5.3 Sub-Panel Design | Scored Sub-Panel
The PCBs are placed directly next to each other without any spacing and are then scored. The process of producing a scored sub-panel enables optimum utilization of the available format but only straight lines can be scored.
Recommendation for transport during assembly: For transport edges, we recommend a minimum width of 5 mm. For the sub-panel corners, we recommend chamfering or rounding by milling (existing radii are negligible).

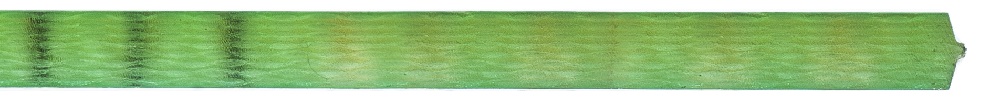

Scored Edge
In the case of jump scoring, the minimum entry and exit is 10 mm as standard. For more information about scoring, see 7.5 Mechanical processes | Scoring.
