17.5 Calculation of Current-Carrying Capacity
Reliable Management of High Currents.

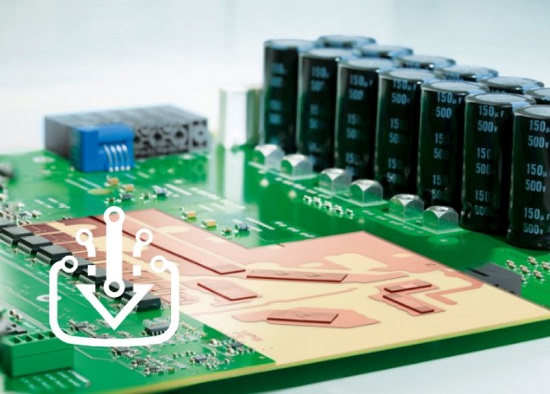

Installation spaces keep getting smaller while currents keep getting larger. It is our mission to continue increasing the capacity of the assembly. With our customized and software-based calculation tool, we can provide you with targeted support that allows you to optimize the current-carrying capacity of your PCB. Together, we will find the right technology for your application while avoiding critical limits. It’s important to ensure that the flow of current from A to B is managed in an optimal way.
We take the following aspects into consideration in our calculations:
Learn more to PCB and current carrying capacity under 3.6.2 PCB | Current carrying capacity
We take the following aspects into consideration in our calculations:
- Temperature conditions
- PCB technology
- Layer stackup
- Number and layout of high-current conductors
Learn more to PCB and current carrying capacity under 3.6.2 PCB | Current carrying capacity
High-Current Calculator
Conductors have to be dimensioned in accordance with a standard set of rules. So why not use our handy high-current calculator high-current calculator for your first calculations? This tool offers a quick and easy way to calculate the necessary conductor width for high-current conductors on an FR4 PCB.
Further information about “high-current” applications can be found under 2.3 High-Current Solutions
Further information about “high-current” applications can be found under 2.3 High-Current Solutions
